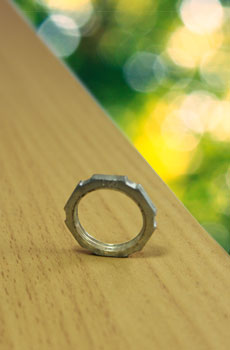

Lock Nut
Overview
Conduit Locknuts are used to secure rigid/ IMC conduit to a steel outlet box or other metal enclosure, functionally replace rigid threaded enclosure connectors, provide economies in installation and fitting costs.
Technical Specification
Hexagonal Lock Nut
Decagonal Lock Nut
Size and Dimension
Type | A | B | T | Weight (Kg) |
E-19 | 24 | 26 | 3 | 0.004 |
E-25 | 32 | 34 | 3 | 0.008 |
E-31 | 38 | 41 | 4 | 0.012 |
E-39 | 45 | 49 | 4 | 0.018 |
E-51 | 65 | 5 | 0.035 | |
E-63 | 79 | 5 | 0.045 | |
E-75 | 93 | 5 | 0.050 |
Product Feature
High Corrosion Resistance
Pure zinc coating on the exterior wall and stoved epoxy resin finish on the inside protects white conduit from corrosion, even by harsh chemicals and sea air.
Easy and Fast Installation
Precise, sharp threads cut by automated machinery mean fast and easy installation. Precise thread also makes our conduit virtually moisture-tight.
Uniform Quality
Flat steel is rolled, zinc - coated and threaded in one continuous automated process for uniform high quality.
